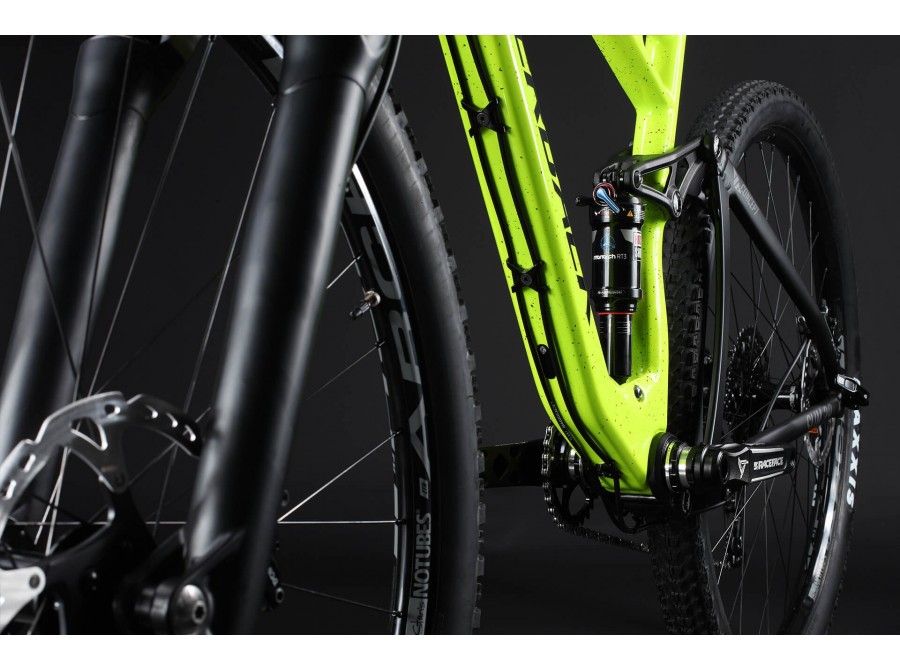

SILVERBACK SYNERGY SLIMFAT

SILVERBACK SYNERGY SLIMFAT
SILVERBACK SYNERGY SLIMFAT SILVERBACK SYNERGY SLIMFAT SILVERBACK SYNERGY SLIMFAT SILVERBACK SYNERGY SLIMFAT SILVERBACK SYNERGY SLIMFAT SILVERBACK SYNERGY SLIMFAT SILVERBACK SYNERGY SLIMFAT
Výrobce: SILVERBACK
Model: SYNERGY SLIMFAT
Dostupnost: Není skladem
Dotaz na produkt
Naše cena: 93 590 Kč

Dostupné varianty:


* Velikost:




Množství:
   - NEBO -
Mountain Trail

Travel

F:120mm R:110mm

Weight

14,75kg



The Synergy range with its 1/3 Concept creates a highly adaptable platform to enable the carbon front triangle full suspension trail bike to cover the three wheel options of Slim (29” with 2.2” tyres), Slimfat (27.5” with 3” tyres), and Fat (26” with 4” tyres) by using different rear triangles. This trail frame has great strength, stiffness, durability and low weight as its core. The bikes use 120mm of front suspension, while the IDS Revo rear suspension has 110mm of plush, responsive and predictable travel to attack the trails with speed and precision.

  • FRAME: SB Trail Carbon Suspension, Tapered 1-1/8”-1.5” Headtube, Alloy 27,5”+ 1in3 Concept rear triangle with IDS Revo Alloy linkages using 148 x 12mm Thru Axle Integrated Dropouts, Replaceable Alloy Hanger, XGuide Cable management System
  • FORK: Rock Shox-Pike RC 29”/27”+, 120mm, Tapered Alloy Steerer, Crown lockout, 15x110mm Dropout, Post Mount Disc
  • REAR SHOCK: Rock Shox Monarch RT3, 110mm Travel, 184x44mm
  • RIMS: Hayes/Sun Ringle Mulefut 50 27.5”, Alloy, 32H,Hayes/Sun Ringle Rimtape and Valves, Black
  • HUBS: Front: 2 Cartridge Bearings, Rear: 4 Cartridge Bearings, 3 Pawl Chromo SRAM XD 11 Speed Freehub Body with 10° Engagement, 32H, 6-Bolt Disc Mount
  • TYRES: Maxxis Chronicle 27.5” x 3.0, TR and EXO, Kevlar Bead
  • STEM: Sector Box, Alloy, S/M: 60mm; L/XL: 75mm, 6° x ∮31.8mm, Black
  • HANDLEBAR: Sector Plane Carbon Flat Top Bar, W: 740mm; Back Sweep: 9°; Up Sweep: 5°; ∮31.8mm
  • SEATPOST: SBC Dropper Post, Remote Lockout, Internal Cable Routing, 100mm Drop, ∮31.6mm, S: 350mm, M/L/XL: 400mm, Black
  • SADDLE: Sector Performance series, Cr-Mo Rails
  • BRAKE SET: SRAM Guide-R, Steel-backed Organic Pads, Hydraulic Brakeset, Rotors; Front: 180mm, Rear: 160mm, 6-Bolt
  • SHIFTERS: SRAM GX X-Actuation SL Trigger Shifter, 11 Speed, Black
  • FRONT DERAILLEUR: N/A
  • REAR DERAILLEUR: SRAM GX X-Horizon w/ Rolling Bearing Clutch and Cage Lock, Black
  • CASSETTE: SRAM XG-1150 11 Speed, 10-42T, Black
  • CRANKSET: Race Face Turbine, 32T, 11 Speed, 175mm
  • BOTTOM BRACKET: Race Face, BSA
    FRAME SIZES S M L
    A SEAT TUBE C/T 400 450 505
    B TOP TUBE 570 600 630
    C HEAD TUBE ANGLE 69,5° 69,5° 69,5°
    D SEAT TUBE ANGLE 74° 74° 74°
    E CHAINSTAY LENGTH 445 445 445
    F BB HEIGHT 27 27 27
    G HEAD TUBE LENGTH 100 110 120

    SYNERGY SLIMFAT Geometry Frame
