SILVERBACK STORM 3

SILVERBACK STORM 3
SILVERBACK STORM 3 SILVERBACK STORM 3 SILVERBACK STORM 3 SILVERBACK STORM 3
Výrobce: SILVERBACK
Model: STORM 3
Dostupnost: Není skladem
Dotaz na produkt
Naše cena: 47 690 Kč

Dostupné varianty:


* Velikost:




Množství:
   - NEBO -
Mountain XC

Travel

100mm

Weight

11.85kg

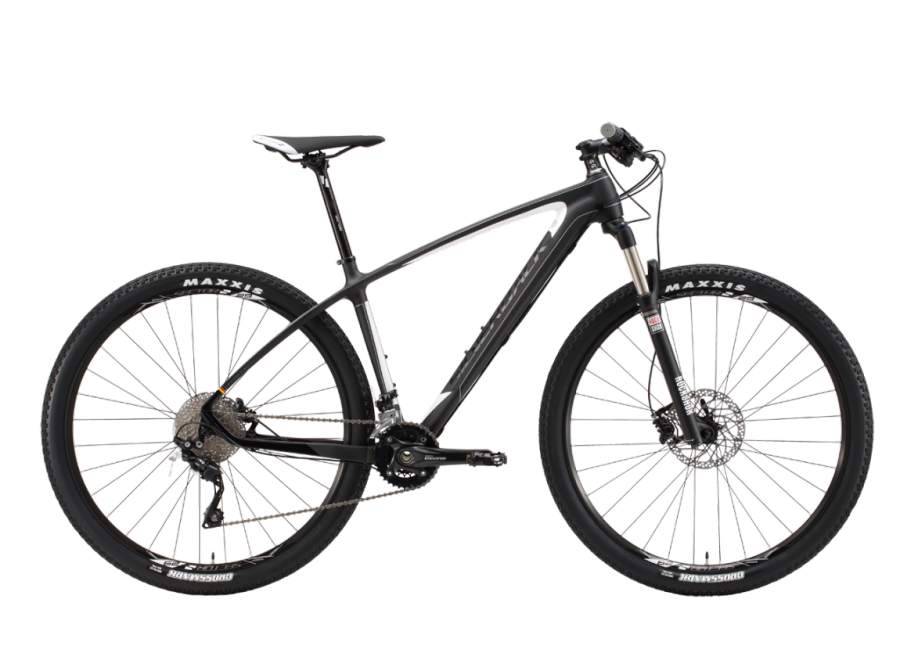

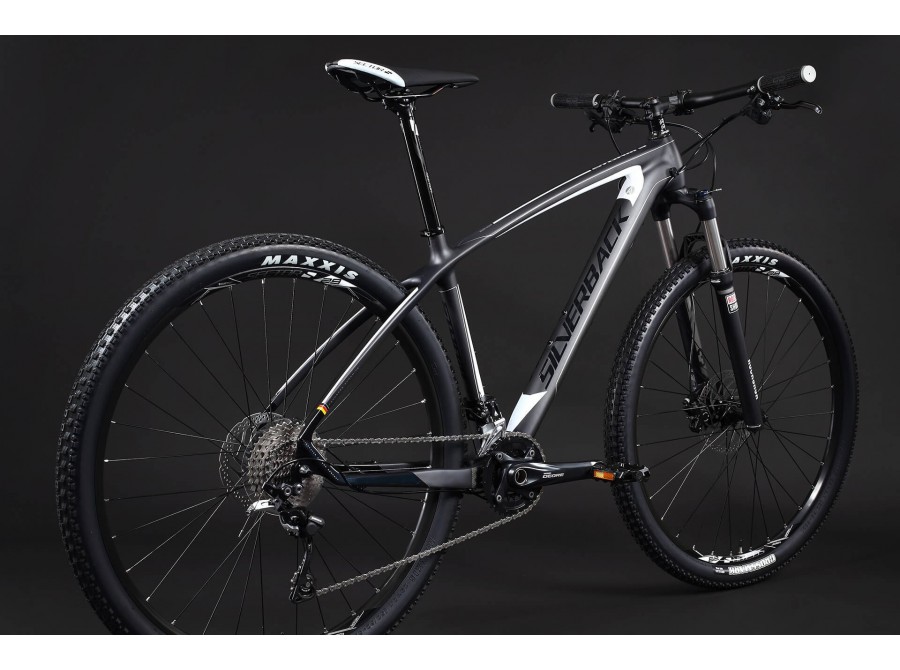

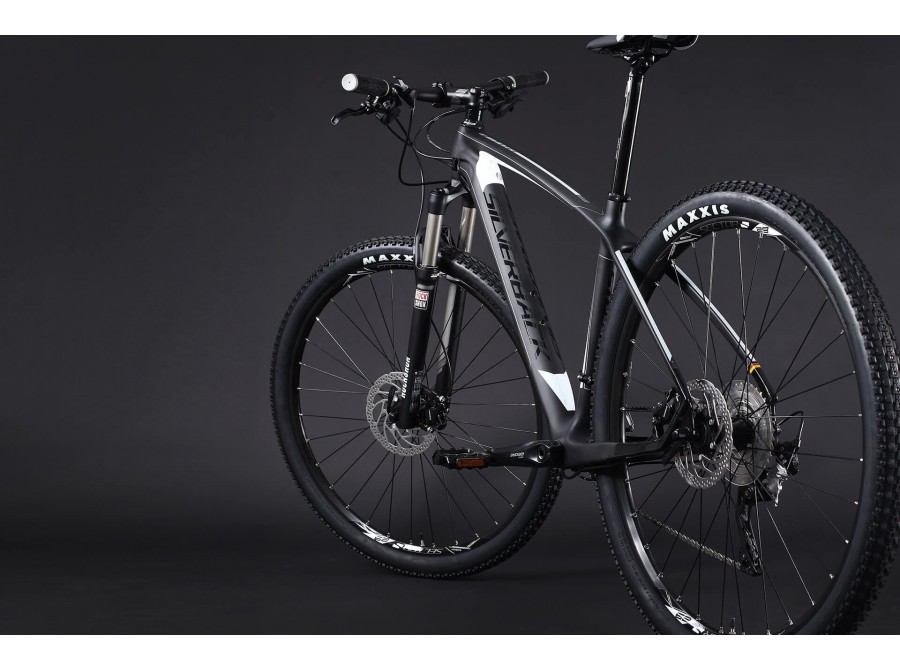

The Storm mountain bike is a race ready carbon performance machine. This platform has been designed to offer the best possible riding characteristics by using the latest in carbon layup technology coupled with outstanding geometry and tubing profiles. The Storm range amplifies the benefits of the 29er wheel size with superior grip and precise handling. This range is stiff and efficient but also offers vertical compliance in seat stays to maintain good comfort levels for marathon racing and allows one to focus on the trail rather than the bumps.

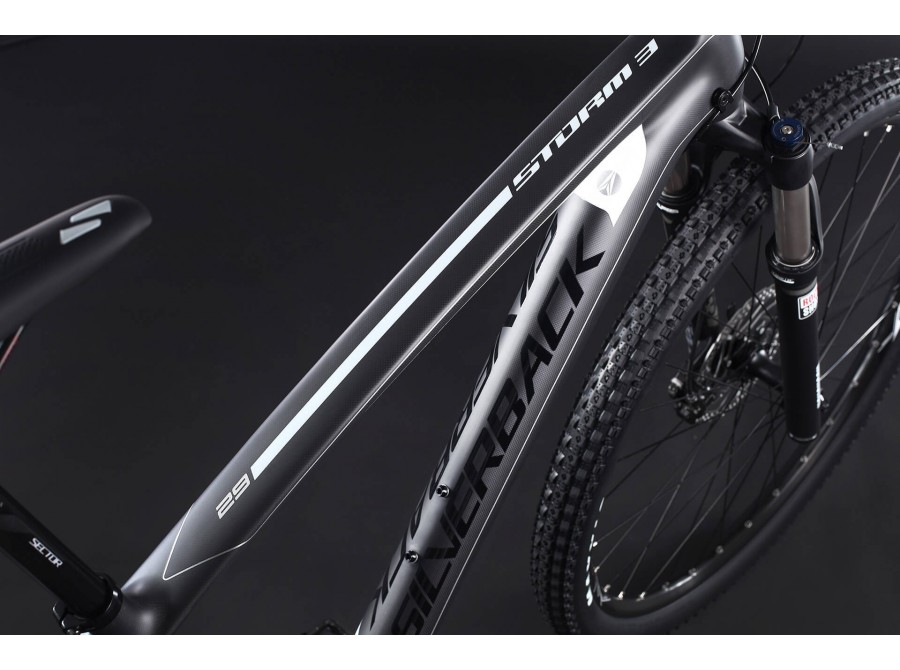

  • FRAME: SB Advanced Dynamics Carbon 29, Premium Twill 3K Fibre, Tapered 1-1/8"" – 1.5” headtube, Press-Fit BB Shell, 135mm QR rear Integrated Dropouts, Replaceable Alloy hanger and XGuide Cable management System

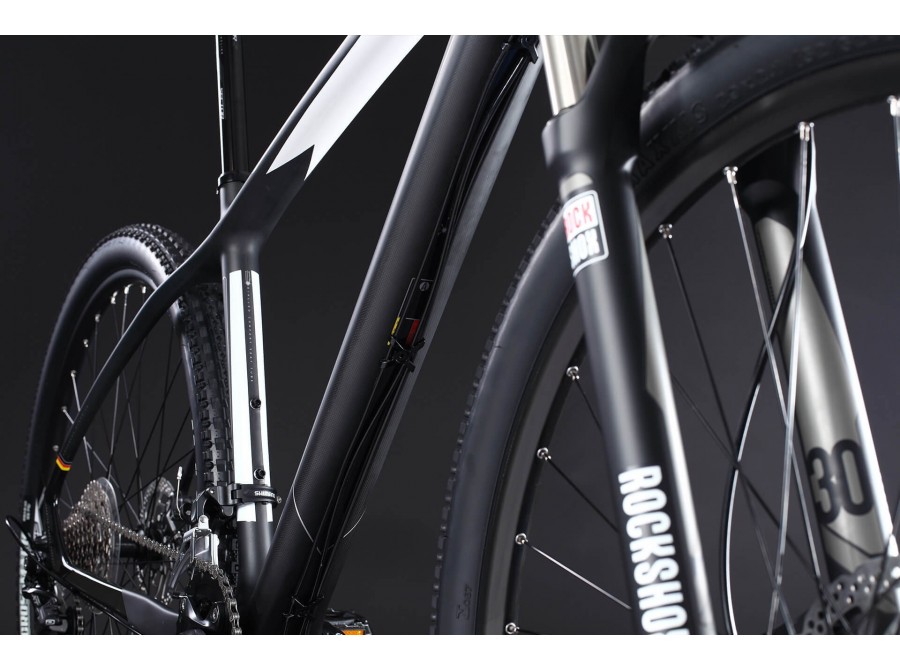

  • FORK: Rock Shox 30 TK29, 100mm Travel, Tapered Alloy Steerer, Remote PopLoc, Diffusion Black
  • REAR SHOCK: N/A
  • RIMS: Alex MD21, 32H, Stainless Steel eyelets, Polyurethane Rimtape, Black, Custom Sector Decals
  • HUBS: Rear : Shimano FH-M615, Centre Lock Disc Mount, Adjustable cup and cone angular contact bearings, Cassette, Black Front: Shimano HB-RM3050, Centre Lock Disc Mount, Adjustable cup and cone angular contact bearings, 9mm Axle, Black
  • TYRES: Maxxis Crossmark, 29” x 2.1, Foldable 60TPI
  • STEM: Sector Reach 3D, 6061 Alloy, S: 70mm; M: 80mm; L: 90mm, 7° x ∮31.8mm, black
  • HANDLEBAR: Sector Plane, 6061 Alloy, Double Butted, W: 700mm; Back Sweep: 9° x ∮31.8mm; 6061 Butted Oversized
  • SEATPOST: Sector Alloy, ∮27.2mm x 400mm; Black, Black bolts
  • SADDLE: Sector, Cr-Mo Rails
  • BRAKE SET: Shimano BR-M447 With BL-M445, Open Hydraulic System, Rotors Front: 180mm; Rear: 160mm, Centre Lock, Black
  • SHIFTERS: Shimano Deore SL-M610, 2x10 Trigger, Black
  • FRONT DERAILLEUR: Shimano Deore FD-M618-H, Clamp-on 31.8mm, Black
  • REAR DERAILLEUR: Shimano XT Shadow Plus RD-M786, Long Cage, 10Spd, Black
  • CASSETTE: Shimano CS-HG50, 10 Speed, 11-36T, Silver
  • CRANKSET: Shimano Deore FC-M617, 38/24T, L: 175mm All sizes, Black
  • BOTTOM BRACKET: Shimano SM-BB71, Press-Fit Hollowtech II
    FRAME SIZES S M L
    A SEAT TUBE C/T 420 450 480
    B TOP TUBE 587 604 627
    C HEAD TUBE ANGLE 70.5° 71° 71°
    D SEAT TUBE ANGLE 73° 73° 73°
    E CHAINSTAY LENGTH 442 442 442
    F BB HEIGHT 315 315 315
    G HEAD TUBE LENGTH 105 105 105
    H WHEELBASE 1083 1096 1119

    STORM 3 Geometry Frame
