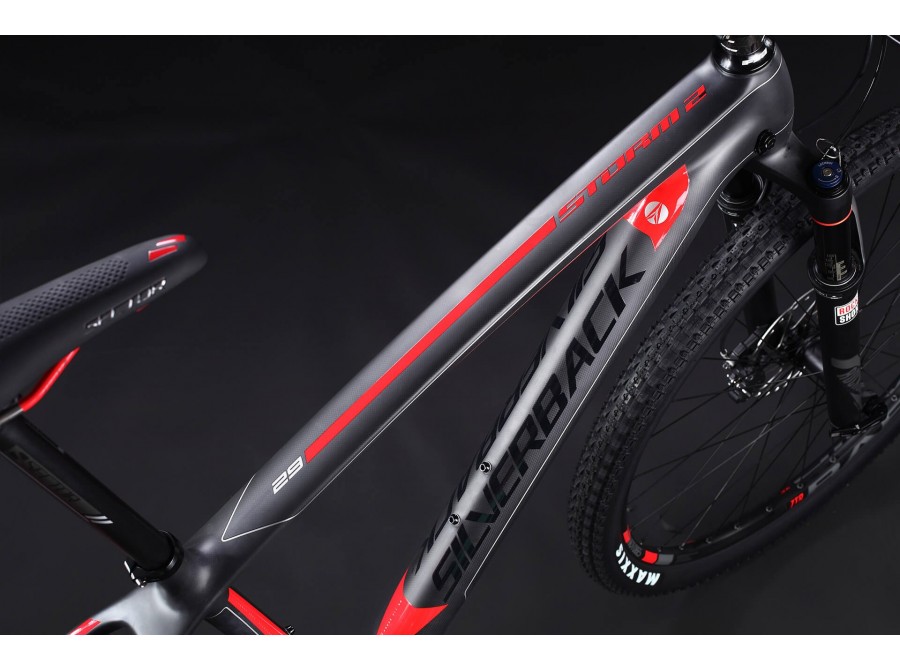

FRAME: SB Advanced Dynamics Carbon 29”, Premium Twill 3K Fibre, Tapered 1-1/8"" – 1.5” headtube, Press-Fit BB Shell, 135mm QR rear Integrated Dropouts, Replaceable Alloy hanger and XGuide Cable management System
-
FORK: Rock Shox Reba RL, 100mm Travel, Solo Air, Tapered Alloy Steerer, Remote OneLoc Sprint, QR15mm Dropout, Diffusion Black
-
REAR SHOCK: N/A
-
RIMS: Stan’s Rapid 25 29”, Alloy 32H, Stan’s Yellow Rimtape, Black, Custom Decals
-
HUBS: Rear: Shimano SLX, Centre Lock Disc Mount, Adjustable cup and cone angular contact bearings, Cassette, Black Front: Shimano SLX, Centre Lock Disc Mount, Adjustable cup and cone angular contact bearings, 15mm Axle, Black
-
TYRES: Maxxis Crossmark, 29” x 2.1, 120TPI
-
STEM: Sector Triple, 3D Forged 6061 Alloy, S: 70mm; M: 80mm; L: 90mm, 7° x ∮31.8mm, Black
-
HANDLEBAR: Sector Plane, Butted 6061 Alloy, W: 700mm; Back Sweep: 9° x ∮31.8mm, Black
-
SEATPOST: Sector Level, 6061 Alloy shaft, ∮27.2mm x 400mm, Twin bolt head design with black bolts
-
SADDLE: Sector Performance, CRN-Ti Rails
-
BRAKE SET: Shimano SLX BL/BR-M675, Open Hydraulic System + Levers, Metal Pads, Rotors : SM-RT64 Front: 180mm; Rear: 160mm, Centre Lock, Black
-
SHIFTERS: Shimano XT SL-M8000 I-spec, 2x11 Trigger, Black
-
FRONT DERAILLEUR: Shimano XT FD-M8025-H, Double, Top Swing, Clamp-on 31.8mm
-
REAR DERAILLEUR: Shimano XT Shadow Tech Plus RD-M8000, Long Cage, 11 Speed, Black
-
CASSETTE: Shimano CS-M8000, 11 Speed, 11-40T, Silver
-

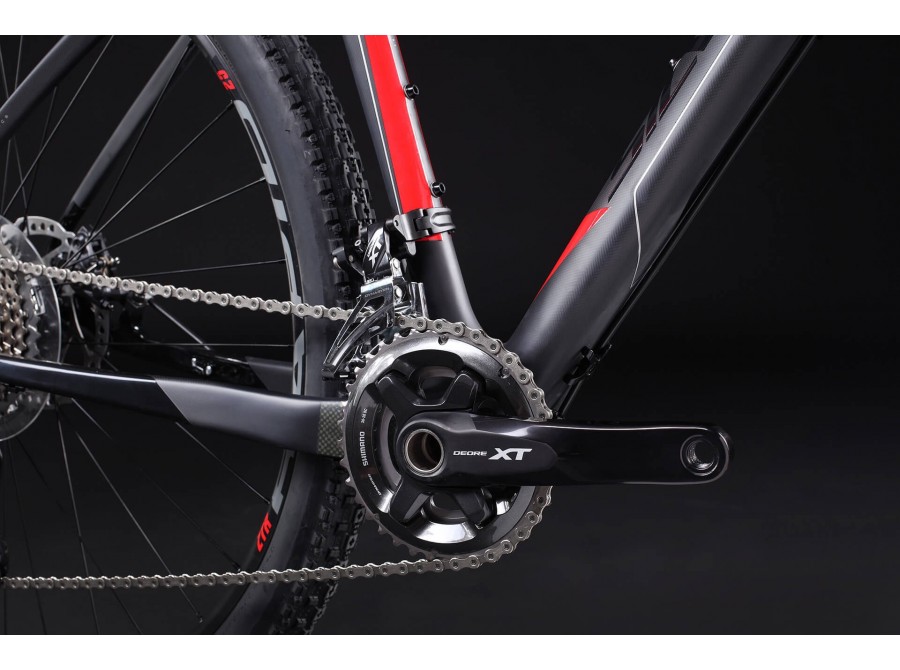

CRANKSET: Shimano XT FC-M8000-2, 36/26T, L: 175mm ALL SIZES
-
BOTTOM BRACKET: Shimano SM-BB71, Press-Fit Hollowtech II

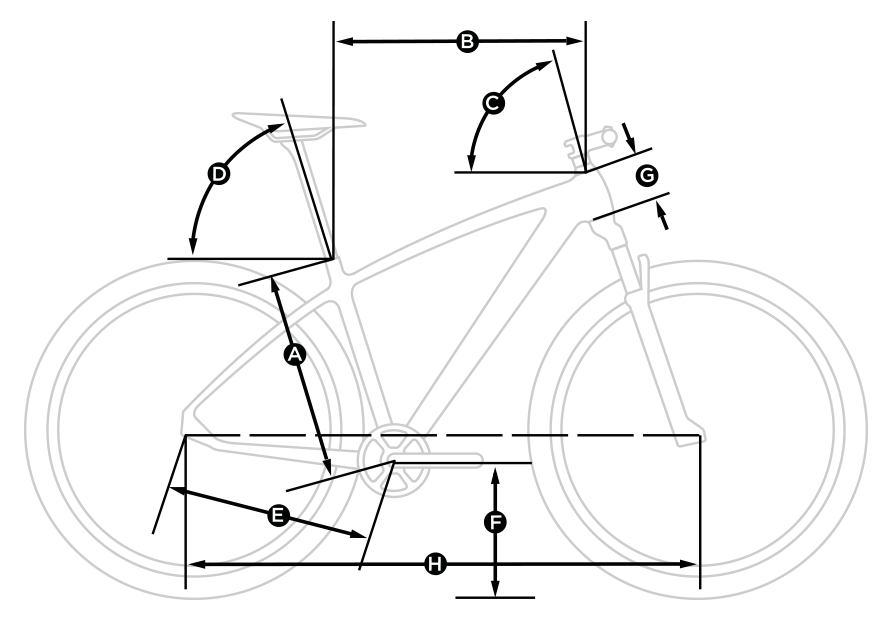

FRAME SIZES |
S |
M |
L |
A |
SEAT TUBE C/T |
420 |
450 |
480 |
B |
TOP TUBE |
587 |
604 |
627 |
C |
HEAD TUBE ANGLE |
70.5° |
71° |
71° |
D |
SEAT TUBE ANGLE |
73° |
73° |
73° |
E |
CHAINSTAY LENGTH |
442 |
442 |
442 |
F |
BB HEIGHT |
315 |
315 |
315 |
G |
HEAD TUBE LENGTH |
105 |
105 |
105 |
H |
WHEELBASE |
1083 |
1096 |
1119
|
