FRAME: Silverback Intelligent Design System(IDS) Revo Technology, Exclusive Suspension Science, 29”, Hydroformed 6061 Alloy Custom Butted Tubing, Tapered 1-1/8”-1.5” headtube, Silverback 12 x 142mm Dropouts, Super-Stiff Stays
-
FORK: Rock Shox Reba RL, 29”, 120mm Travel, Solo Air, Tapered Alloy Steerer, Crown Lockout, QR15 Dropout, Post Mount Disc
-

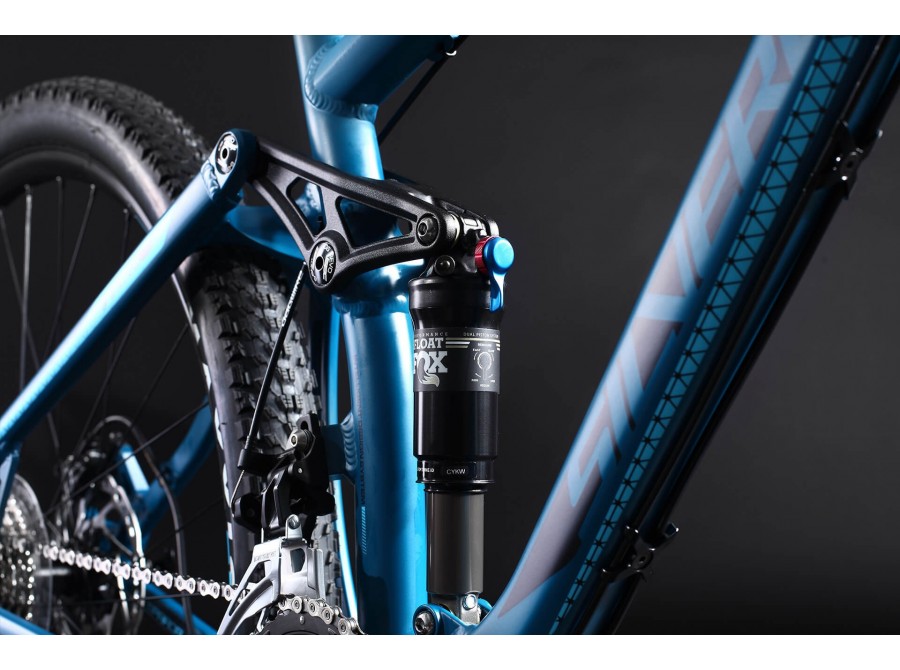

REAR SHOCK: Fox Float DPS, 3-pos, SV, 110mm Travel, 184 x 44mm
-
RIMS: Alex Volar 2.5 29”, 32H, Stainless Steel eyelets, Polyurethane Rimtape, Black, Custom Sector Decals
-
HUBS: Rear: Shimano Deore FH-M618, Centre Lock Disc Mount, Adjustable cup and cone angular contact bearings, Cassette, 12 x 142mm Axle, Black, Front: Shimano Deore HB-M618, Centre Lock Disc Mount, Adjustable cup and cone angular contact bearings, 15mm Axle, Black
-
TYRES: Maxxis Ardent Race, 29” x 2.2, Kevlar Bead, 60TPI
-
STEM: Sector Box, Alloy, S/M: 80mm; L/XL: 90mm, 7° x∮31.8mm, Black
-
HANDLEBAR: Sector Plane, 6061 Double Butted Alloy, W: 720mm; Back Sweep: 9° x ∮31.8mm
-
SEATPOST: Sector Level, 6061 Alloy, ∮31.6mm, S: 300mm; M: 350mm; L/XL: 400mm, Black
-
SADDLE: Sector, Cr-Mo Rails, Light Foam Padding
-
BRAKE SET: Shimano Deore BL/BR-M615, Open Hydraulic System, Metal Pads, Rotors: Front: 180mm; Rear: 160mm, Centre Lock, Black
-
SHIFTERS: Shimano Deore SL-M610, 2x10 Trigger, Black
-
FRONT DERAILLEUR: Shimano Deore FD-M618, Double, Direct Mount, Black
-
REAR DERAILLEUR: Shimano XT, RD-M786, Long Cage, 10 Speed, Black
-
CASSETTE: Shimano CS-HG50, 10 Speed, 11-34T, Silver
-
CRANKSET: Shimano FC-M627, 38/24T, L: 175mm All sizes, Black
-
BOTTOM BRACKET: Shimano SM-BB52 External Hollowtech ll

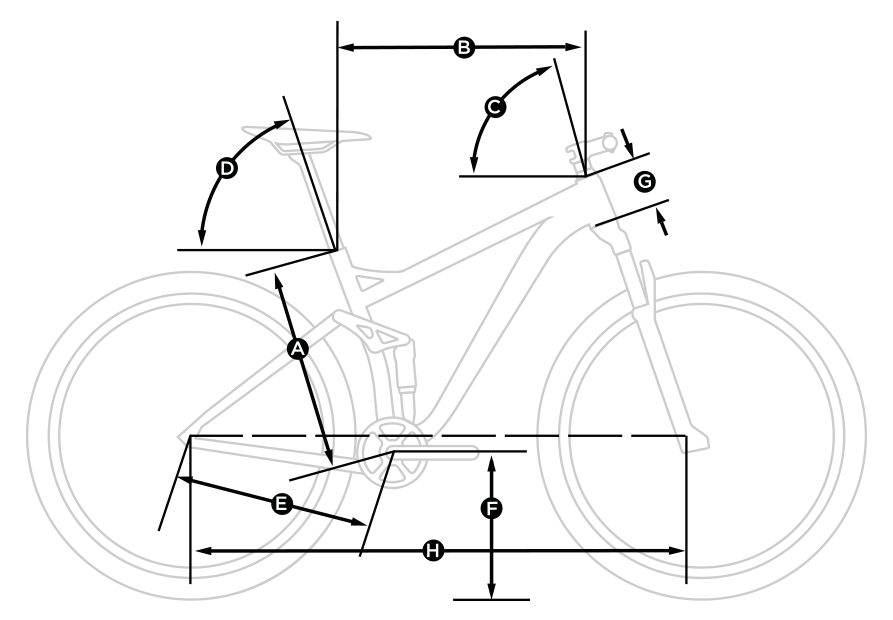

FRAME SIZES |
S |
M |
L |
XL |
A |
SEAT TUBE C/T |
400 |
450 |
500 |
550 |
B |
TOP TUBE |
570 |
600 |
625 |
637 |
C |
HEAD TUBE ANGLE |
70° |
70° |
70° |
70° |
D |
SEAT TUBE ANGLE |
74° |
74° |
74° |
74° |
E |
CHAINSTAY LENGTH |
445 |
445 |
445 |
445 |
F |
BB HEIGHT |
340.5 |
340.5 |
340.5 |
340.5 |
G |
HEAD TUBE LENGTH |
110 |
110 |
110 |
120 |
H |
WHEELBASE |
1104 |
1129 |
1154 |
1167
|
