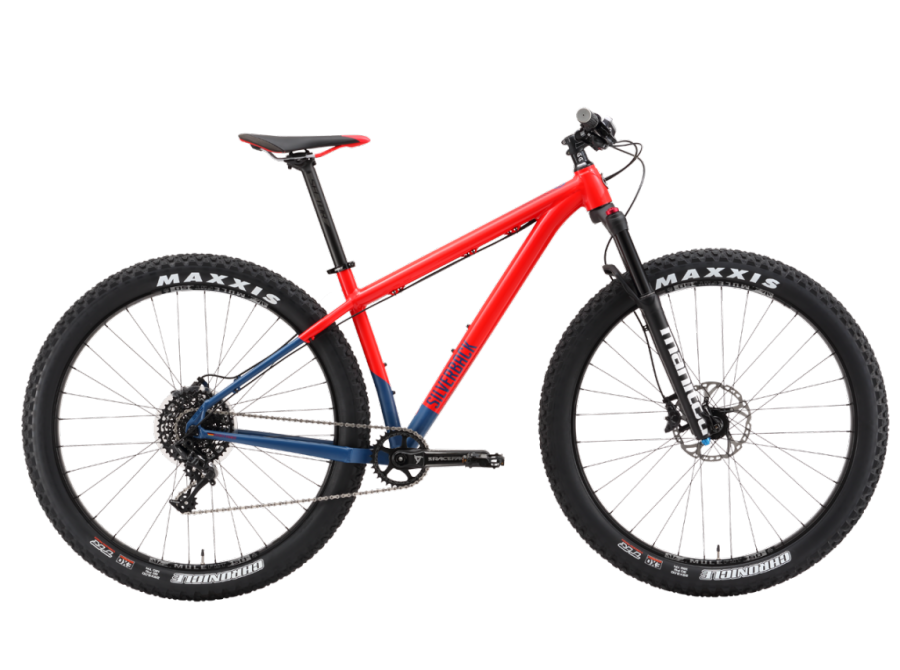

SILVERBACK SPHERE 1

SILVERBACK SPHERE 1
SILVERBACK SPHERE 1 SILVERBACK SPHERE 1 SILVERBACK SPHERE 1 SILVERBACK SPHERE 1 SILVERBACK SPHERE 1 SILVERBACK SPHERE 1
Výrobce: SILVERBACK
Model: SPHERE 1
Dostupnost: Není skladem
Dotaz na produkt
Cena: 53 890 Kč

Dostupné varianty:


* Velikost:






Množství:
   - NEBO -
Mountain Trail

Travel

F:100mm

Weight

13.87kg



These hardtail bikes using 3.0” tyres allow the rider to attack terrain which would normally pose a problem on regular sized mountain bike tyres. The increased weight of the wheels with wide rims and 3.0” tyres is counteracted well with the added traction, comfort and stability they provide.

The Sphere platform uses a sizing system of extra small and small bike sizes with 27.5 x 3.0” tyres, whereas the medium, large and extra large bike sizes use 29 x 3.0” tyres. Sphere 1 is more performance driven, with shorter chainstay and high end tubing, while the Sphere 2 has slightly more stable geometry for increased traction and balance for entry level riders.

  • FRAME: 29” Butted 6061 Aluminium, Tapered 1-1/8”-1.5”Headtube, XS/S: 27.5”;M/L/XL: 29”,135mm QR Dropouts
  • FORK: Manitou Magnum Comp 27.5+, 100mm, Tapered AlloySteerer, XS/S: 27.5”+; M/L/XL: 29”+, Crown lockout, 15x110mm Dropout, Post Mount Disc
  • REAR SHOCK: N/A
  • RIMS: Hayes/Sun Ringle Mulefut SL 50mm 27.5”/29”+, Alloy, 32H, 29”+ for M/L/XL, 27.5”+ for XS/S sizes, Sun Ringle Nylon Rim tape, Black
  • HUBS: Rear: SRAM 746, 6-Bolt Disc Mount, Sealed cartridge bearings, XD Driver body, 12x 148mm Axle Black; Front: SRAM 716, 6-Bolt Disc Mount, Sealed cartridge bearings, 150 x 15mm Thru Axle, Black
  • TYRES: Maxxis Chronicle 27.5”/29”+ x 3.0, TR and EXO, Kevlar Bead
  • STEM: Sector Box, 6061 Alloy, S/M: 60mm; L/XL: 75mm, 6° x ∮31.8mm, Black
  • HANDLEBAR: Sector Plane, W: 720mm; Back Sweep: 9° x ∮31.8mm; 6061 Double Butted Oversized
  • SEATPOST: Sector Level, 6061 Alloy, ∮31.6mm, XS/S: 350mm; M/L/XL: 400mm, Black
  • SADDLE: Sector, Cr-Mo Rails

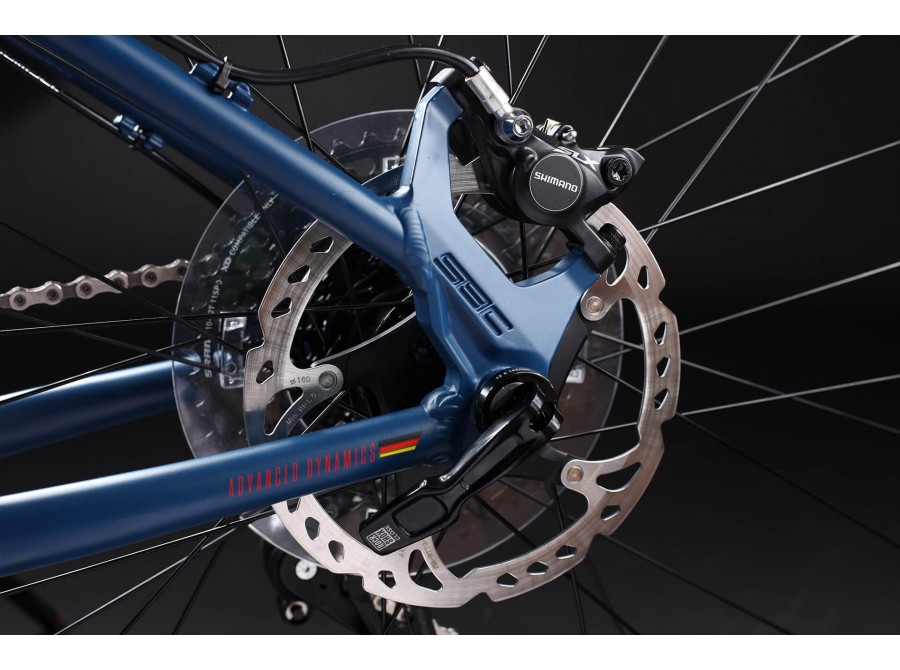

  • BRAKE SET: Shimano SLX BL/BR-M675, Open Hydraulic System, Metal Pads, Levers Rotors Front: 180mm; Rear: 160mm
  • SHIFTERS: SRAM GX X-ACTUATION Trigger Shifter, 11 Speed, Black
  • FRONT DERAILLEUR: N/A
  • REAR DERAILLEUR: SRAM GX X-Horizon w/ Rolling Bearing Clutch and Cage Lock, Black
  • CASSETTE: SRAM XG-1150 11 Speed, 10-42T, Black
  • CRANKSET: Race Face Turbine Cinch, 32T, XS/S: 170mm; 175mm All other sizes, Black
  • BOTTOM BRACKET: Race Face, BB-92
    FRAME SIZES XS S M L XL
    A SEAT TUBE C/T 370 390 440 490 540
    B TOP TUBE 554 575 605 625 645
    C HEAD TUBE ANGLE 68° 68° 68° 68° 68°
    D SEAT TUBE ANGLE 73.5° 73.5° 73.5° 73.5° 73.5°
    E CHAINSTAY LENGTH 430 430 430 430 430
    F BB HEIGHT 314 314 314 314 314
    G HEAD TUBE LENGTH 105 105 105 105 105
    H WHEELBASE 1074 1105 1148 1159 1191

    SPHERE 1 Geometry Frame
