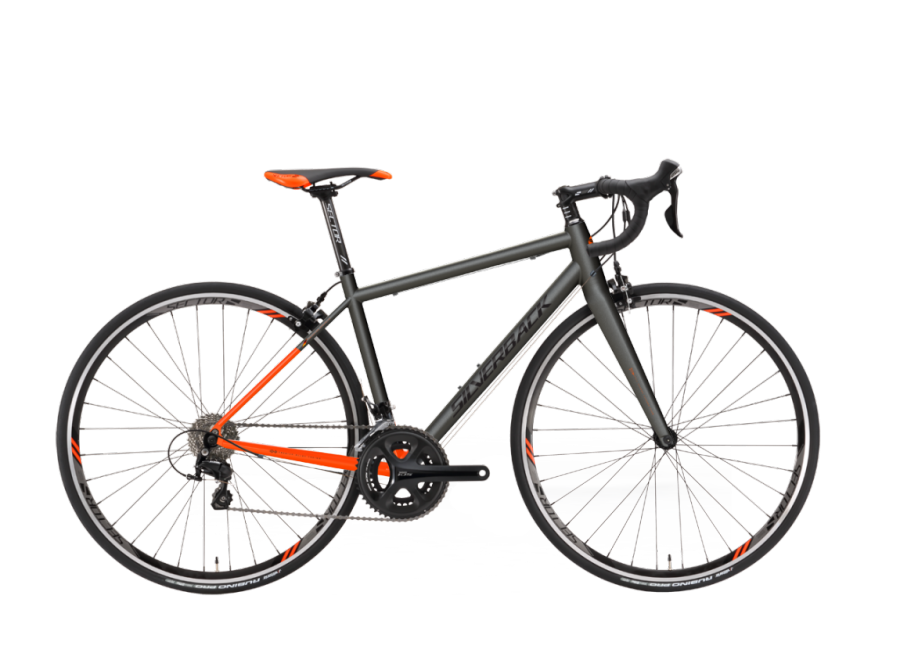

Our Siablo road bicycle range fuses super lightweight aluminium tubing and compact geometry for an efficient, fast and comfortable road ride. Full carbon tapered fork adds to the lively and comfortable ride feel, thereby complementing the frame’s characteristics. The fork offset and frame geometry enhance the bike’s comfort on long rides by being stable yet lively for easy control across all sizes.

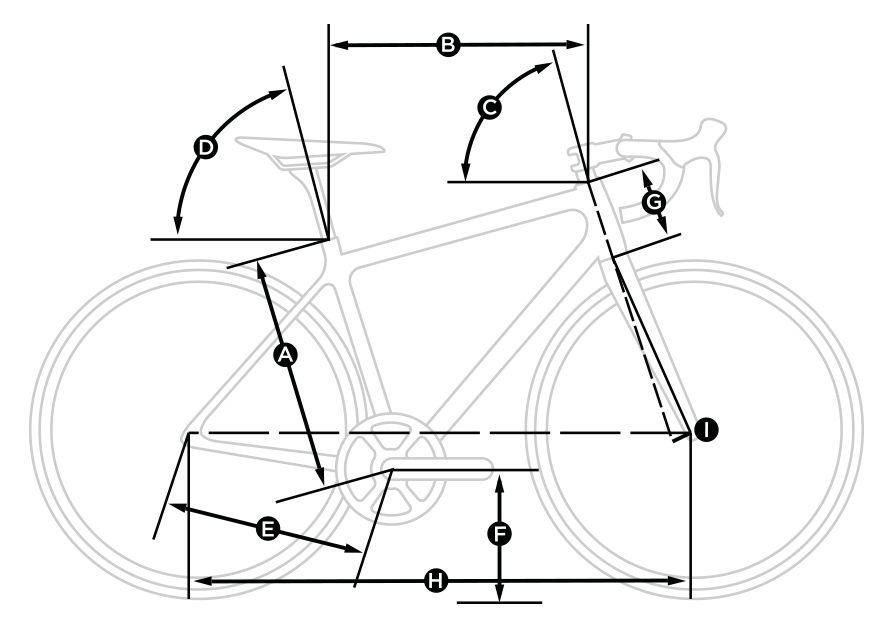

FRAME SIZES | XXS | XS | S | M | L | |
---|---|---|---|---|---|---|
A | SEAT TUBE C/T | 380 | 410 | 440 | 470 | 500 |
B | TOP TUBE | 495 | 508 | 522 | 535 | 555 |
C | HEAD TUBE ANGLE | 70.5° | 71.5° | 72° | 72.5° | 72.5° |
D | SEAT TUBE ANGLE | 75° | 75° | 74.5° | 74° | 73.5° |
E | CHAINSTAY LENGTH | 412 | 412 | 412 | 412 | 412 |
F | BB HEIGHT | 266 | 266 | 266 | 266 | 266 |
G | HEAD TUBE LENGTH | 115 | 120 | 140 | 160 | 185 |
H | WHEELBASE | 975 | 980 | 985 | 982 | 997 |
I | FORK OFFSET | 52 | 52 | 52 | 45 |
45
|
